Prepainted steel sheet 0.55x1219mm to DOMINICAN REPUBLIC PANAMA

 Red Prepainted steel sheet 0.55x1219mm to Dominican Republic,PANAMA Paraguay

Lamina de acero prepintada sobre sustrato de aluminio-zinc al 55% en

rollo.

Nombre del Producto / Name of product:

Lamina de acero prepintada sobre sustrato de aluminio-zinc al 55% en

rollo.

Prepainted steel sheet on 55% aluminum-zinc alloy-coated substrate in

coil.

Designación del acero/Designation of Steel sheet: CS Type B

Norma/Standard: ASTM A755M

Recubrimiento metálico/ Metallic coating: AZM150

Sistema de recubrimiento orgánico/ Organic coating system:

Poliester/Polyester

Espesor primer lado superior/ Top side primer thickness: 25 mil

Espesor primer lado inferior/ Bottom side primer thickness: 5 mil

Color lado superior/Top side color: Rojo/Red (RAL 3009)

Color lado inferior/Bottom side color: SignalWeib (RAL 9003)

Dimensiones / Dimensions

Espesor / Thickness: 0.55 mm

Ancho / Width: 1219 mm

Planeza/Flatness: 10 mm

A755/A755M is a standard covers steel sheet metallic coated by the hot-dip process and coil-coated with organic films for exterior exposed building products. Sheet of this designation is furnished in coils, cut lengths, and formed cut lengths. Building products include corrugated and various types of roll and brake-formed configurations.

This photo shows PPGL in White color, color number RAL 9003, this is a very useful color in industrial like buildings, household electrical appliances.

This color requires  thicker paint coating than darker colors, otherwise can not cover the base metal color.

Specification:

Thickness: 0.4mm

Width: 30-1500mm, customized

Color: As RAL color number or Customized

Painting Thickness: Primer 8μm (Max), Top coat 25μm (Max),Backer coat 5+15μm (Max),

Coating Mass: AZM150

Steel Standard: ASTM A755/A755M

Type of Coatings in Standard ASTM A755/A755M:

acrylic, conversion coating, epoxy, flfluorocarbon, plastisol, polyester, polyurethane, primer, silicone polyester

Coating Characteristics in Standard ASTM A755/A755M:

They also can be used as a test item for quality inspection.

• Chalking, v—the formation on a pigmented coating of a friable powder evolved from the film itself at or just beneath the surface.

• Fade, v—a loss in color intensity experienced by pigmented organic coatings over time, generally due to the effect of ultraviolet radiation.

• Gloss, n—the luster, shininess, or reflecting ability of a surface.

Classification

The substrate shall conform to all requirements of the appropriate specification for the steel sheet product ordered as follows:

• Zinc-Coated (Galvanized)—Specifications ASTM A653/ A653M and ASTM A1063/A1063M.

• Zinc-5 % Aluminum Alloy-Coated—Specification ASTM A875/A875M.

• 55 % Aluminum-Zinc Alloy-Coated—Specification ASTM A792/A792M.

• Aluminum Coated—Specification ASTM A463/A463M.

• Zinc-Aluminum-Magnesium Alloy-Coated— Specification ASTM A1046/A1046M.

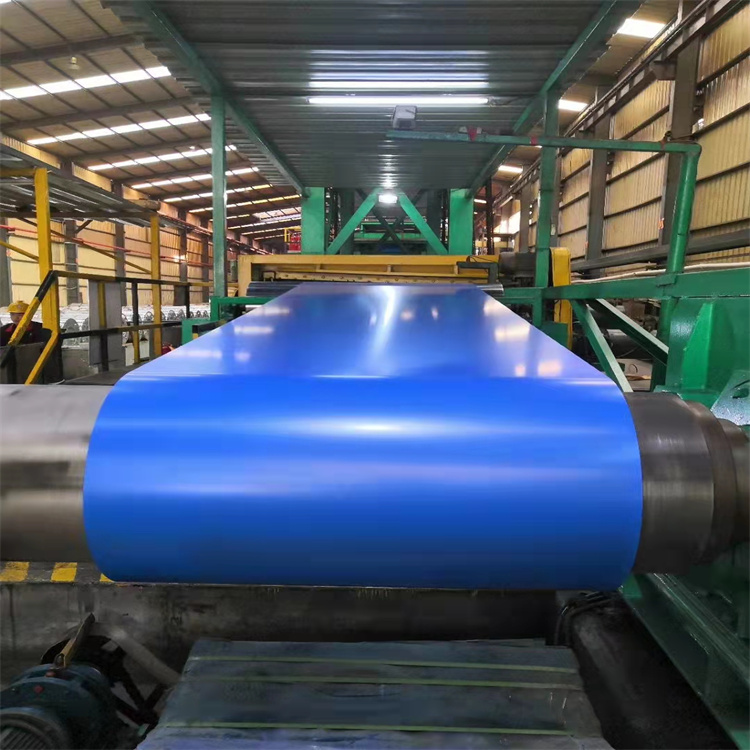

This photo shows a bule color PPGL coil in production line.

AFP is anti-finger print, it is a transparent painting to protect the paint coating and base metal, longer the service life. PPGL coil with AFP is a very common requirement in ordering.

Paraguay is a country in South America, like other South American countries such as Brazil, Colombia, Peru and Chile, Paraguay with a big demand for PPGL coils and sheets in building industrial.

This is a production video of Black color PPGL coil in our factory, hope it helps you to know more about the products and our quality.
