Clip Lock 730 PPGI Roofing Sheet Malaysia
Specification of Clip Lock 730 Roof Sheet:
Profile: Clip Lock 730
Effective width: 730mm
Depth of rib: 37mm
Steel standard: ASTM A792/792M, ASTM A924/924M, ASTM A755/755M
Yield strength: G550 Mpa
Minimum roof pitch: 1°
Tolerance: Normally Thickness ±3mm, Width±5mm, Length±10mm, or as clients designation
What is Clip Lock 730?
Clip Lock 730 is one of the popular roofing system models in Malaysia that combines concealed fastening features with structural performance. The concealed fixing method, with a clip and locking system, minimizes the risk of leakage, making it an ideal roofing product for extra-long roofing projects. On-site roll forming is suitable for any long-term roofing project.
High-strength steel coil is the only raw material from which the Clip Lock 730 is made, making it durable. Recommended for low roofs like warehouses, shop offices, shopping malls or any large roofing projects.
432524.jpg "Clip-Lock-730-PPGI-Roofing-Sheet-Malaysia(3)432524.jpg")
This photo shows clicp lock 730 roof sheet, you can see the details, there are 4 main ribs and 2 small ribs between 2 main ribs.

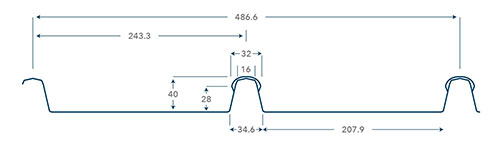

This photo shows detailed drawing of clicp lock 730 roof sheet.
This photo shows fixing clip of clicp lock 730 roof sheet.
Advantage of Clip Lock 730 Roof Sheet:
Customized
long span ability
Minimize the risk of leakage
durable
Wider effective coverage width of 730mm
Thickness Available Chart of Clip Lock 730 Roof Sheet
| Base Metal Thickness(mm) | 0.35 | 0.42 | 0.48 |
| Total Coated Thickness(mm) | 0.4 | 0.47 | 0.53 |
| Weight Per Meter(kg/m) | 2.67 | 3.18 | 3.61 |
| Weight Per Sq Meter(kg/m2) | 3.77 | 4.48 | 5.08 |
| Coverage Per Ton(m2/MT) | 265 | 223 | 197 |
| Steel Grade | MS2383 | MS2383 | MS2383 |
| Min. Yield Strength(MPa) | 550 | 550 | 550 |
Recommended Maximum Roof Length
| Rainfall(mm/h) | 250 | 300 | 400 | 500 |
| Slope In Degree | ||||
| 1° | 130 | 110 | 85 | 67 |
| 2° | 168 | 142 | 99 | 85 |
| 3° | 198 | 165 | 120 | 100 |
| 5° | 245 | 200 | 155 | 124 |
| 7.5° | 290 | 247 | 185 | 148 |
Recommended Maximum Spacing of Supports
| Base Metal Thickness (mm) | 0.35 | 0.42 | 0.48 | |
| Total Coated Thickness (mm) | 0.4 | 0.47 | 0.53 | |
| Roof | End Span (mm) | 1300 | 1600 | 2000 |
| Internal Span (mm) | 1800 | 2100 | 2500 | |
| Wall | End Span (mm) | 2000 | 2800 | 3000 |
| Internal Span (mm) | 2700 | 3500 | 3600 | |
| Overhang (mm) | 150 | 200 | 300 | |
